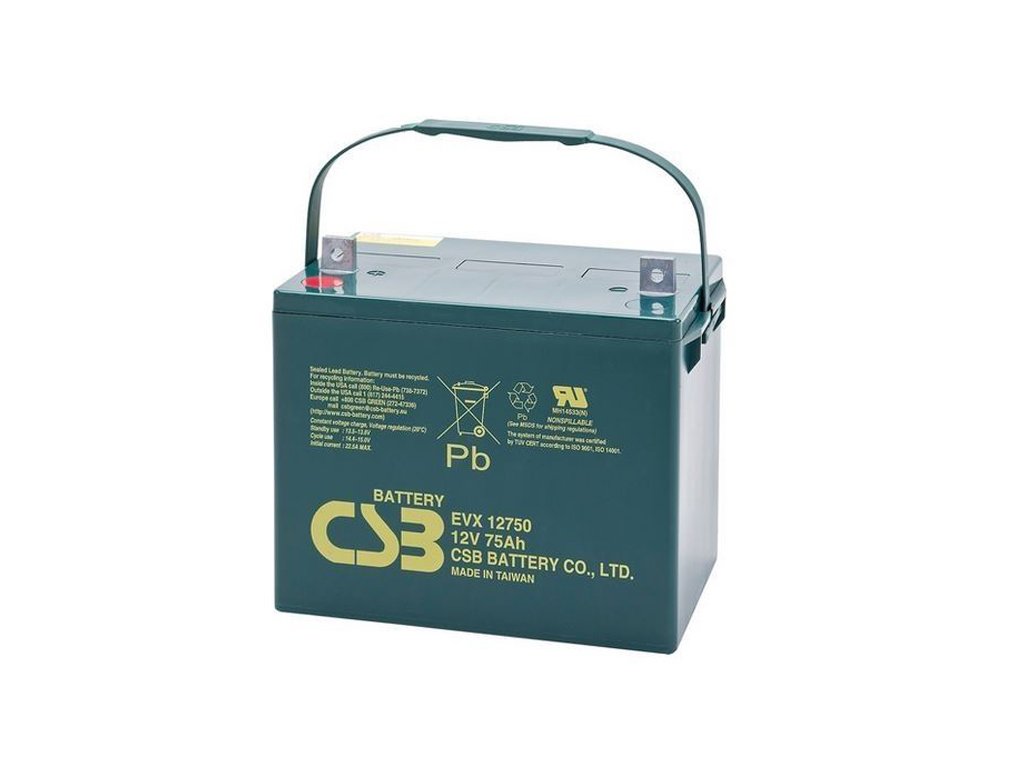

CSB EVX12750, 12V, 75Ah

Product detailed description

CSB EVX series AGM traction batteries. These are sealed lead-acid batteries in VRLA design. This is a design in which the internal pressure is regulated by valves (VRLA - valve regulated lead acid = valve-controlled lead-acid batteries). AGM technology (absorbed glass mat = electrolyte absorbed in glass fleece), the battery does not contain electrolyte in a liquid state, the electrolyte is absorbed in glass fleece, and thus it is firmly bound in the interior of the battery cells, which eliminates its leakage. The extra strong cell grid ensures high cyclic resistance of the battery. CSB EVX batteries can also be used for "stand by" applications, when the batteries are under constant power supply and serve as a backup source in the event of a power outage. Especially where outages are frequent and the batteries are deeply discharged.

FEATURES:

• AGM = electrolyte is bound in glass fleece
• high quality standard of materials and processing
• higher maximum discharge currents
• absolutely maintenance-free (in terms of water topping up)
• longer life than a conventional flooded battery
• cyclic resistance (resistance to repeated charging and discharging)
• resistance to deep discharge (better resistant to deep discharge)
• during cyclic operation, charging voltage 14.4 – 14.9V at a temperature of 25°C
• during backup power supply operation, charging voltage 13.5 – 13.8V at a temperature of 25°C
• shock-proof – vibration-proof
• spill-proof block – leak-proof, the battery can operate permanently at an angle of inclination of up to 90°
• it is not a dangerous product of the FAA and IATA categories

Lifespan: approximately 700 cycles / 50% d.o.d.
CSB AGM batteries EVX, optimal service life is given in cycles at a temperature of 20°C, the number of discharge cycles with regular discharge to 50% d.o.d. (d.o.d. = depth of discharge = 50% energy is removed from the battery) is approximately 700 cycles.

These traction batteries are intended primarily for the following applications:

• power supply of ELECTRIC ENGINES (golf carts, electric bicycles, electric scooters and others)
• MOTORHOME CARS (caravans, trailers, external power supplies)
• SHIPS, BOATS, SAILING BOATS, (for electric motors, power supply of other devices on board)
• SOLAR DEVICES (cyclic charging and discharging - solar energy accumulated in the battery)
• MOBILE TRAFFIC CONTROL SYSTEMS, TRAFFIC LIGHTS, WARNING SIGNS
• electric battery 4-wheel bikes, scooters, mopeds

About the manufacturer:

CSB products are used by world-renowned producers of computer and office equipment such as: POWERWARE, APC, LIBERT, MGE, RIELLO, SICON SOCOMEC, IBM, ASCOM, and others. The quality of batteries used, for example, in backup power supplies, is ensured by several properties. One of the main requirements is the same physical properties of individual battery cells, connected in series or series-parallel. If this condition is met, a long service life is guaranteed. CSB batteries meet this condition and millions of users around the world appreciate this.
