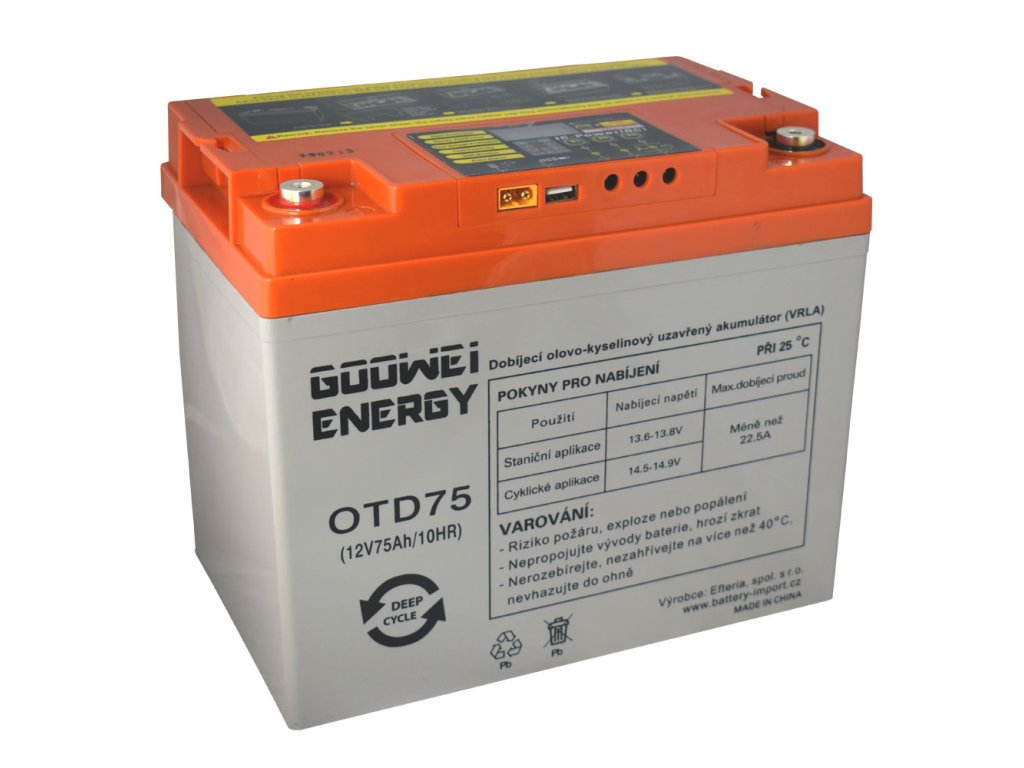

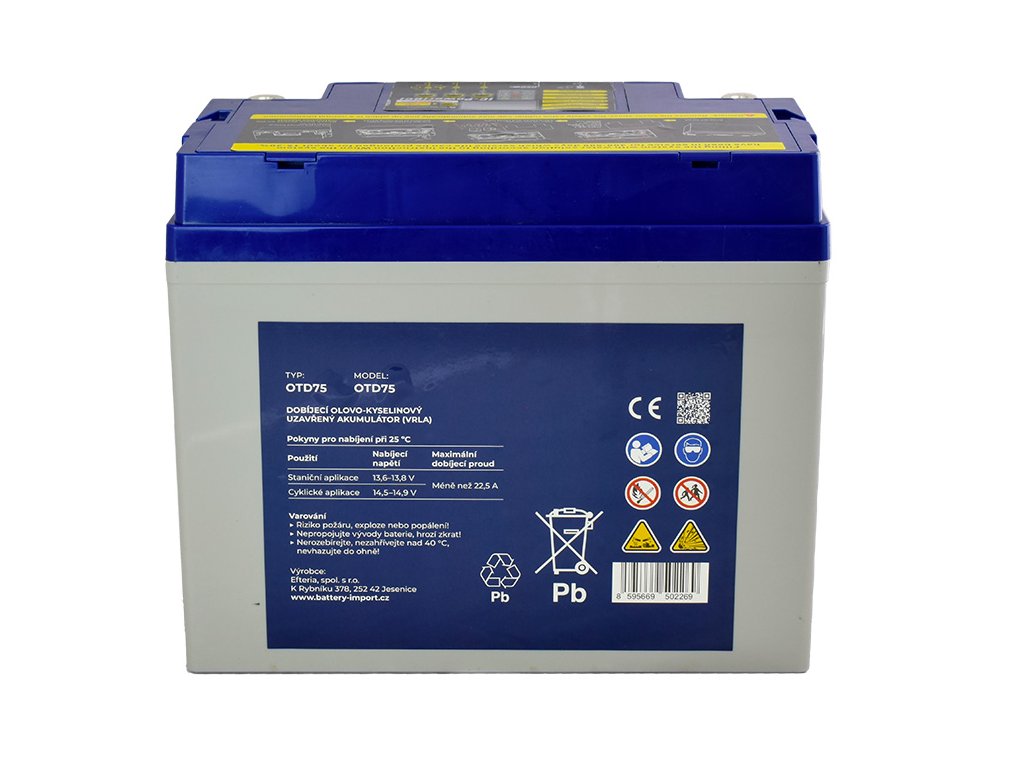

GOOWEI ENERGY GEL OTD75, 75Ah, 12V

Product detailed description

New generation of high-tech batteries GOOWEI ENERGY OTD-DEEP CYCLE series.

GOOWEI ENERGY gel traction batteries, OTD - DEEP CYCLE series, are produced under the private brand of our company. Based on many years of experience in the field of batteries, we, in cooperation with the manufacturer, emphasized the high quality of the materials used (purity of lead), long cyclic life (extra-strong cell grids) and maximum reliability and safety of the batteries in operation. These are sealed lead-acid batteries in VRLA design. Hybrid GEL technology = the electrolyte is reinforced in a hybrid gel (combination with AGM), and thus it is firmly bound in the interior of the cells, which eliminates its leakage. The extra-strong cell grid ensures high cyclic resistance, which predetermines these batteries for applications where frequent and deep discharge - cycling occurs. Thanks to a long-term contract and direct import from custom production, these quality batteries are available at very reasonable prices!

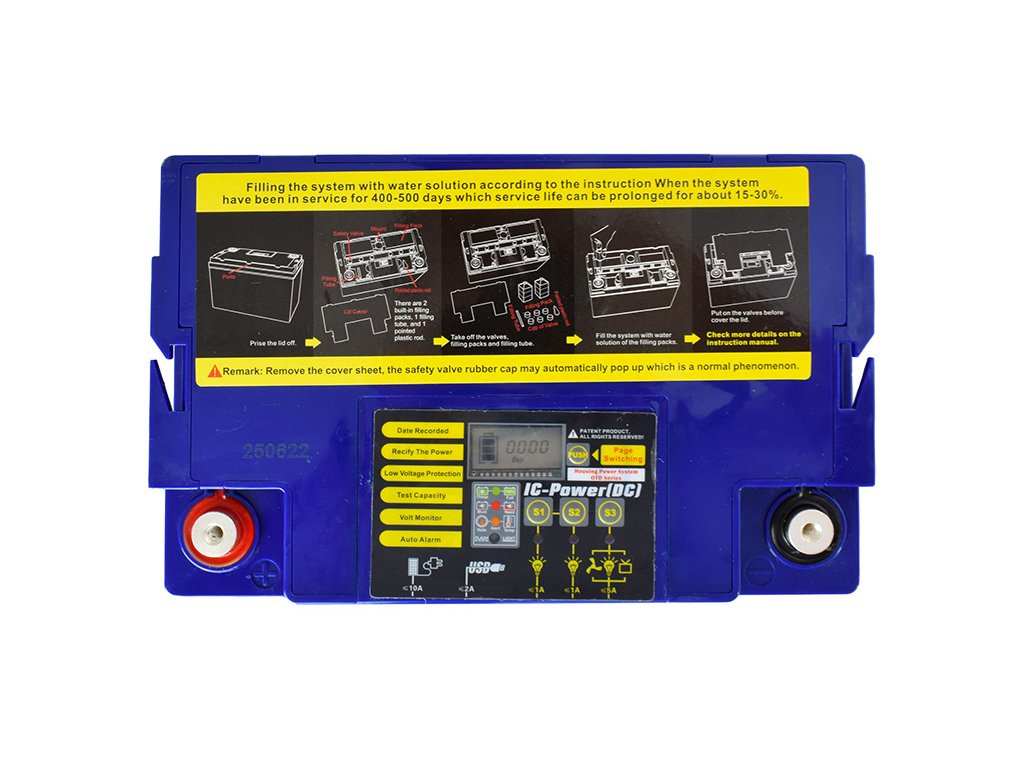

GOOWEI ENERGY from the OTD-DEEP CYCLE series presents a new generation of traction batteries as an independent source of energy for your appliances! Ideal wherever there is no permanent power source. In summer houses, cottages and huts, in caravans or motorhomes, on boats and houseboats or for long camping trips. However, they are also very suitable as a power source for electric motors. With these batteries, you will always have the battery energy under control! The battery is equipped with a display that is activated by pressing a button and displays the current battery voltage and approximate information about the remaining capacity for 30 seconds. The system also has functions that warn of deep discharge of the battery and the need to recharge it. You will also be warned of abnormally high battery temperature or high charging voltage. By respecting the system's control functions, you can significantly contribute to achieving optimal battery life.

For the simplest way to use energy, four output ports are built directly into the battery lid: 1x USB (2A) and 3x universal ports S1 (1A), S2 (1A), S3 (5A). The system is also equipped with an input port for easy connection of a solar panel (max. 18V) or a charger. This makes it easy to ensure continuous charging of the battery and at the same time powering appliances. The battery includes cables for both the input port and the output ports, which ensure very easy connection of the necessary devices.

Each GOOWEI ENERGY battery from the OTD-DEEP CYCLE series contains ampoules with diluted electrolyte with a density of 1.05 - 1.10g/ml, which are stored in the battery lid and serve to extend the battery life. During demanding operation (frequent and deep discharge), even maintenance-free batteries gradually lose electrolyte (distilled water partially evaporates and sulfur gradually settles in the grid plates of the cells = sulfation). The manufacturer increases the useful value of the battery in this innovative way. It is recommended to add this diluted electrolyte to all battery cells after approximately 100 cycles or 18 months of operation, which will actually extend its service life by approximately 15 to 30%. Adding diluted electrolyte is not a necessity, it is just an added value that serves to extend the service life of the battery. This one-time step does not affect the maintenance-free nature of the battery. When adding diluted electrolyte, it is necessary to follow the safety instructions, see the instructions for use.

FEATURES:

• Hybrid GEL = electrolyte is bound in hybrid gel (combination with AGM)
• higher maximum discharge currents
• absolutely maintenance-free (in terms of refilling with distilled water)
• much longer cycle life than a conventional flooded battery
• during cyclic operation, charging voltage 14.5 – 14.9V at a temperature of 25°C
• during backup operation, charging voltage 13.6 – 13.8V at a temperature of 25°C
• resistance to deep discharge (max. 80% D.O.D.)
• shockproof – vibration-proof
• unbreakable block – leak-proof, the battery can operate permanently at an angle of up to 90°, however, the recommended working position is classically with contacts up, in the side position there is an increased risk of damage to the display and contacts
• this is not a dangerous product of the FAA and IATA categories

Cyclic life: up to 800 cycles / 50% D.O.D. at 20 - 25°C.
Optimal life in "STAND BY" mode: 10 years and more at 20 - 25°C

To achieve optimal battery life in cyclic operation, it is necessary to respect the maximum permissible depth of discharge of 80% D.O.D. specified by the CSN EN61044 standard.

GOOWEI ENERGY batteries from the OTD-DEEP CYCLE series are intended primarily for the following applications:

• MOBILE CARAVANS (caravans, trailers, external power supplies)
• SHIPS, BOATS, SAILING BOATS (for electric motors and for powering appliances on board)
• SOLAR DEVICES (cyclic charging and discharging - solar energy storage)
• MOBILE TRAFFIC CONTROL SYSTEMS, TRAFFIC LIGHTS, WARNING SIGNS
• power supply for ELECTRIC MOTORS (golf carts, fishing boats, etc.)
• power supply for electric motors for electric bicycles, electric scooters, etc.
• electric battery 4-wheel bikes, construction electrical wheel carriges, etc .

In applications where batteries are connected in series, we recommend including a protective element - BALANCER, which ensures voltage balance between individual batteries. By including this element, you prevent battery damage and at the same time extend their lifetime!
