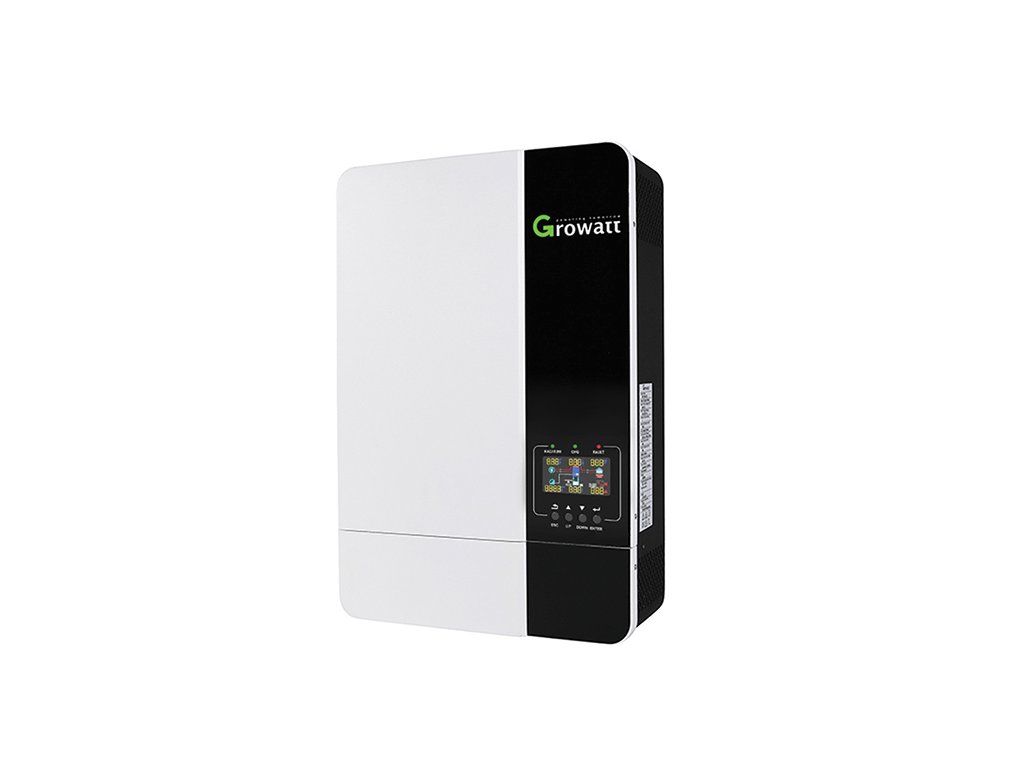

Growatt SPF 5000ES inverter 5kW 48V

Product detailed description

The Growatt SPF 5000 ES inverter is the optimal choice for so-called island systems without an available distribution network - a generator and/or battery can be connected to the unit as a backup energy source. This is a hybrid inverter with a sine wave output ideal for home and small commercial systems. The built-in MPPT controller can handle up to 6 kW of PV arrays with a maximum open circuit voltage of 450Voc. It can work with both lead-acid and Li-ion batteries. Of course, there are RJ45 ports for CAN/RS485 communication with the BMS of LiFePO4 modular batteries of brands such as Pylontech, WECO, Seplos, etc.

The inverter can also be operated without a battery, provided that it is actively connected to the distribution network. In SUB operating mode, the inverter monitors the load power and the power of the available photovoltaic source, and any missing energy is supplemented from the distribution network. The device allows for bypass settings, which in the event of a battery or PV array disconnection will connect the inverter output to the distribution network within 10ms to prevent power interruption. It also supports UPS mode with a switchover to battery-only operation in 10ms.

By connecting inverters in parallel, a total system power of up to 30kW can be achieved. The inverter can be fitted with a WiFi/LAN communication module for remote control and monitoring.

Features:

• Integrated MPPT solar controller
• Balance charging function
• Ability to operate with or without a battery
• Input photovoltaic voltage up to 450 VDC
• Configurable priority of grid or solar input
• With the possibility of remote monitoring via WiFi
• Support for parallel operation to expand capacity up to 30 kW
• PV and grid supply the load together if PV energy is insufficient
• Flexible planning of charging and discharging times by the inverter
• Active cooling fans with speed control according to the inverter load
• We provide a free WiFi module for wireless communication and monitoring with the inverter.

The big advantage is easy installation and intuitive control with inverter settings via a clear LCD display, PC or simply a mobile phone.

When operating the inverter in Solar Priority mode and when operating without a battery, the inverter behaves as a so-called "hybrid", there is a possibility of electrical energy overflows into the distribution network. To eliminate these overflows, use the SBU Battery Priority mode, where when the battery lacks energy, it switches to bypass.

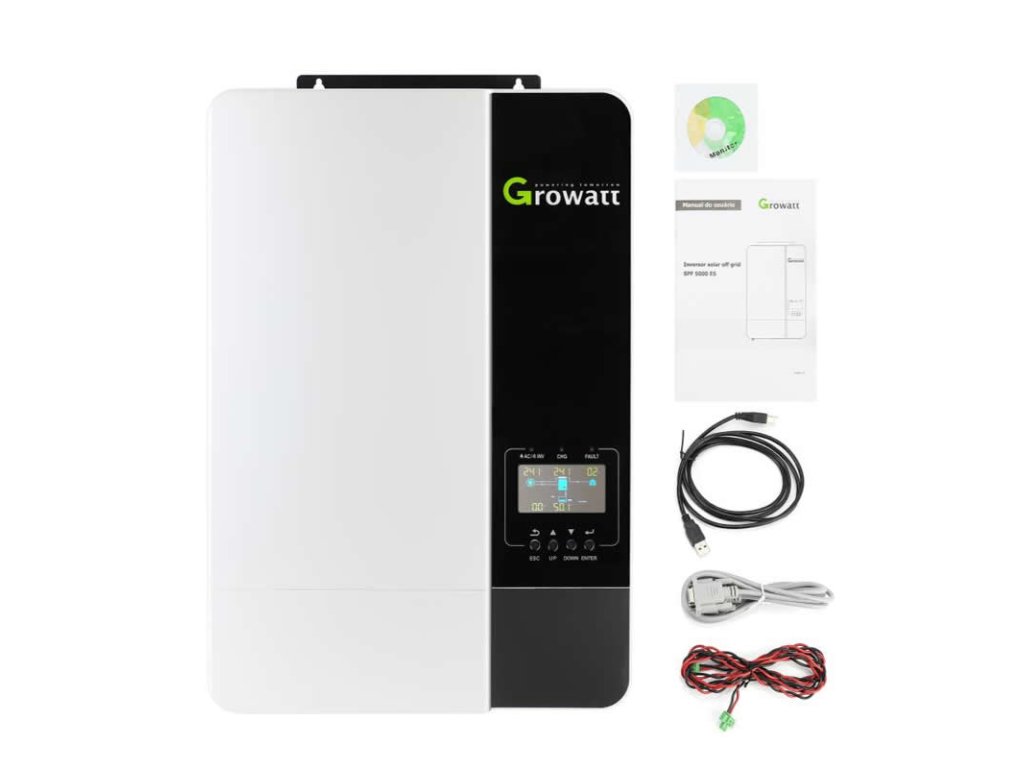

Included in the package: WiFi module, CD with monitoring software, USB data cable for connecting to a PC, communication cable for parallel connection, power cable for parallel connection, instructions

Growatt is one of the world's largest manufacturers of photovoltaic inverters and is even a leader among suppliers for residential use. It currently sells its products in 160 countries around the world and has 41 local representatives. The company designs, develops and manufactures photovoltaic inverters, energy storage products, chargers for electric vehicles, an intelligent energy management system and more.
