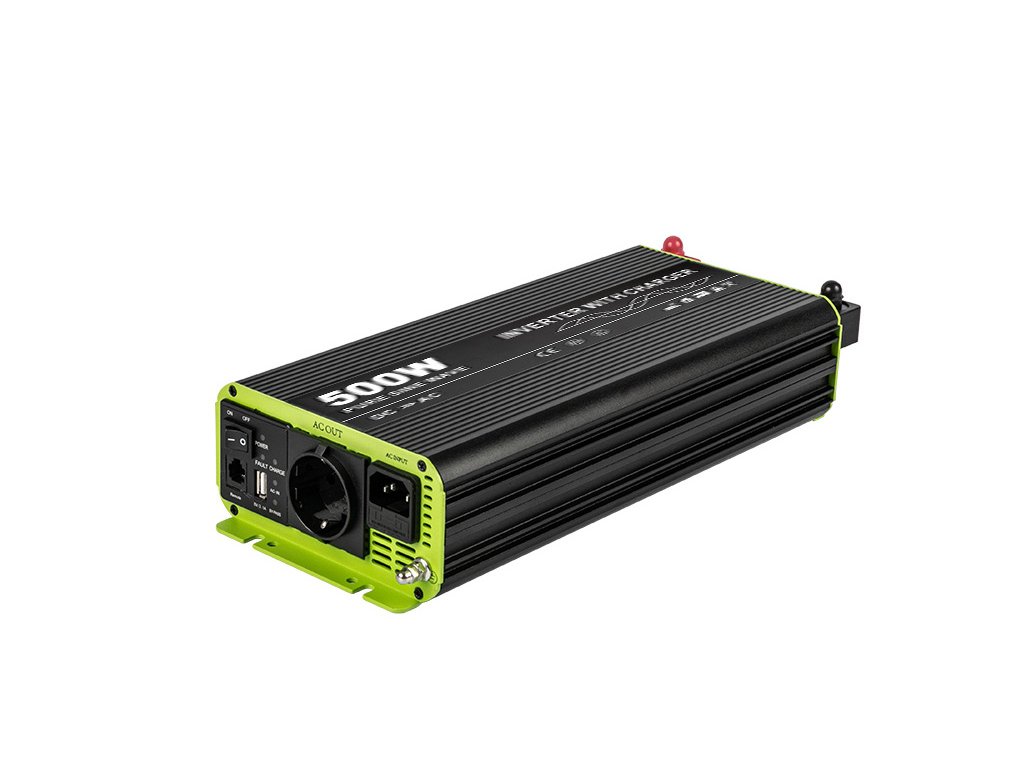

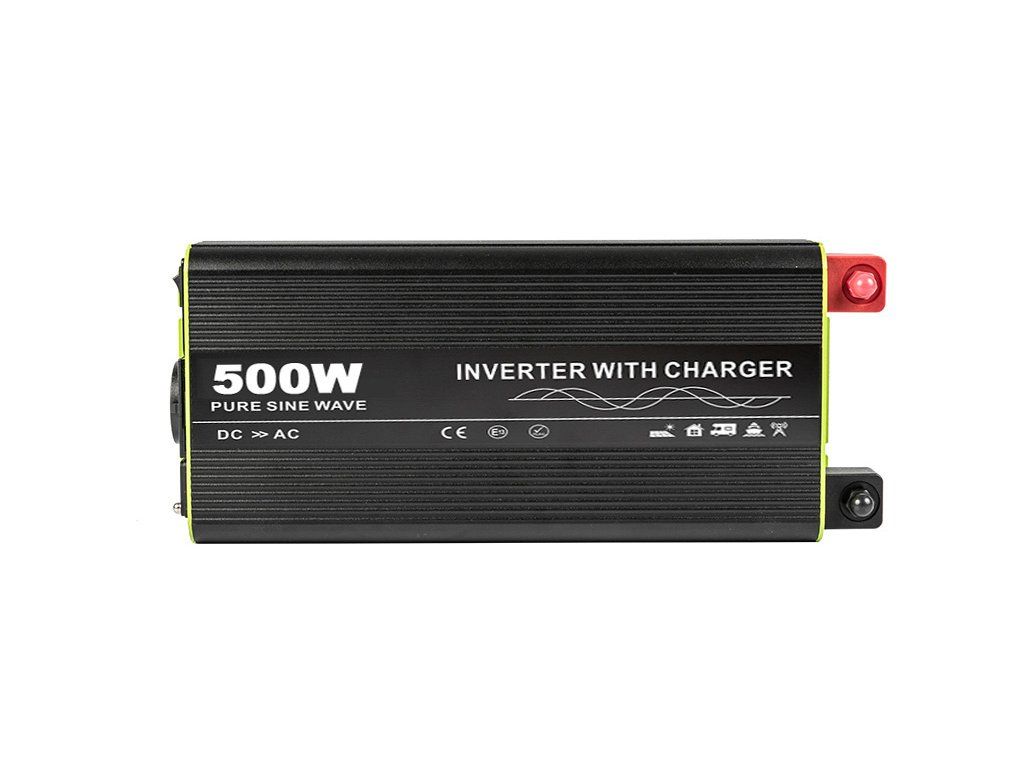

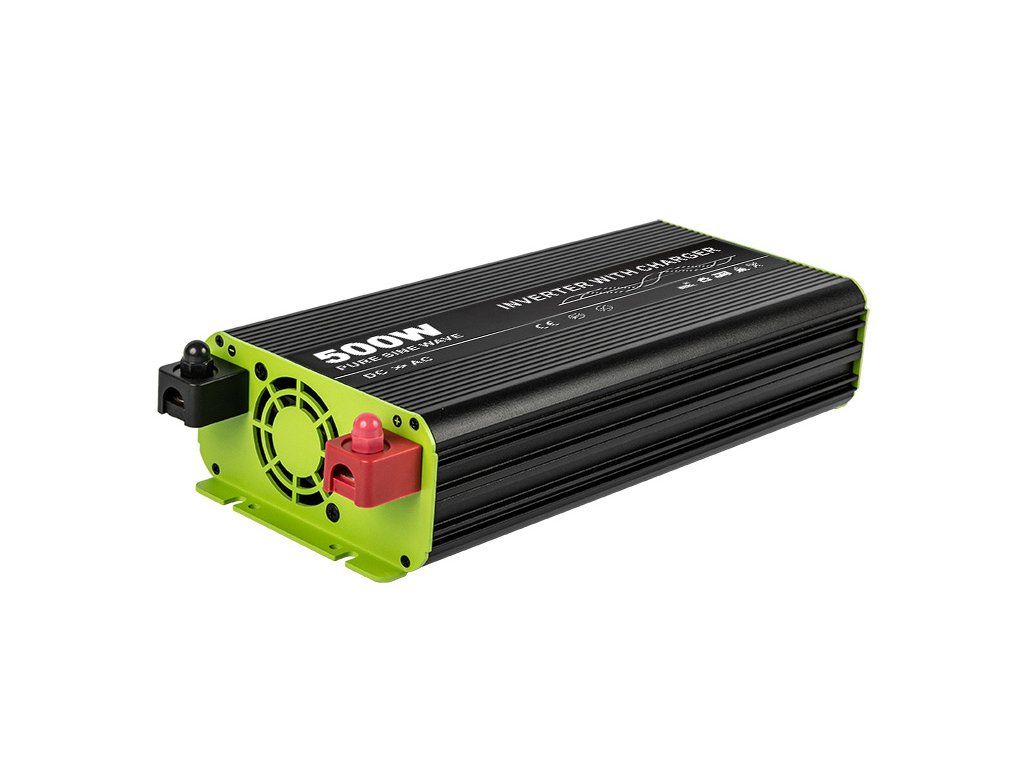

KOSUN pure sine voltage inverter with charger DC12V / AC230V, 500W
Code: E8193Related products
Product detailed description
KOSUN pure sine wave inverter has an integrated charger.
Modern and attractive design, high-quality workmanship, durability and reliability of operation are the characteristic features of this product. SMT chip technology and wave soldering were used in production (for greater resistance and durability of the chips). Therefore, the components are robust and shock-resistant.
This is a device designed to supply alternating current in places where there is no permanent mains power supply. The inverter is intended for use mainly in the wild, at a cottage or small week-end house, on a boat, in a caravan, in a truck, when traveling, etc. Thanks to the pure sine wave at the output, it can be used for various electrical appliances with regard to the required power input (W).
The integrated 3-stage charger is designed for charging lead-acid batteries (WET-flooded), maintenance and maintenance-free, gel, AGM, EFB. The charger is not intended for charging Li-ion batteries (LiFePO4, etc.) !!!
To properly select a KOSUN inverter, you need to know whether you will use it for appliances with high starting current (refrigerators, fluorescent lamps, compressors). And based on this, you need to select an inverter with the appropriate parameters.
Voltage inverter features:
- high quality workmanship, long service life
- use of SMT chip technology and wave soldering
- protection against overheating, overload, short circuit, reverse polarity
- compact dimensions, low weight
- small and quiet fan, protecting against excessive heating
- integrated 3-stage charger
- socket for alternating current (AC) output for connecting appliances
- high price / quality ratio
Package contents:
- KOSUN 500W device, 12V (DC)
- cable for connecting to the public network 230V (AC)
- red + black cable for connecting the battery
- Instructions manual
Additional parameters
| Category: | POWER INVERTER |
|---|---|
| Warranty: | 24 months |
| Weight: | 3.5 kg |
| Model: | RSC500P-212 |
| Dimensions LxWxH (mm): | 310 x 150 x 70 |
| Nominal input voltage: | 12V (DC) |
| Output voltage: | 230V (AC) |
| Continuous output power (W): | 500 |
| Peak output power (W): | 1000 |
| Effectivity (%): | 88 |
| Output frequency: | 50 Hz (± 1 %) pure sinus |
| Waveform distortion (%): | <3 |
| Protection against: | overload, short circuit, reverse polarity, overheating (switches off at 70°C) |
| Cooling: | active, automatic, fan |
| Unload current (mA): | 320 |
| Operating temperature (°C): | -10 až +60 |
| Humidity: | max 90% non-condensing |
| Protection: | safety fuse |
| Certificates: | CE(EN55032), ISO9001, ATF16949, BSCI |
| Test reports: | LVD(EN60950-1), ROHS(EN50581), E-MARK(E13), UL TEST(C81155072), Reach(1907/2006) |
