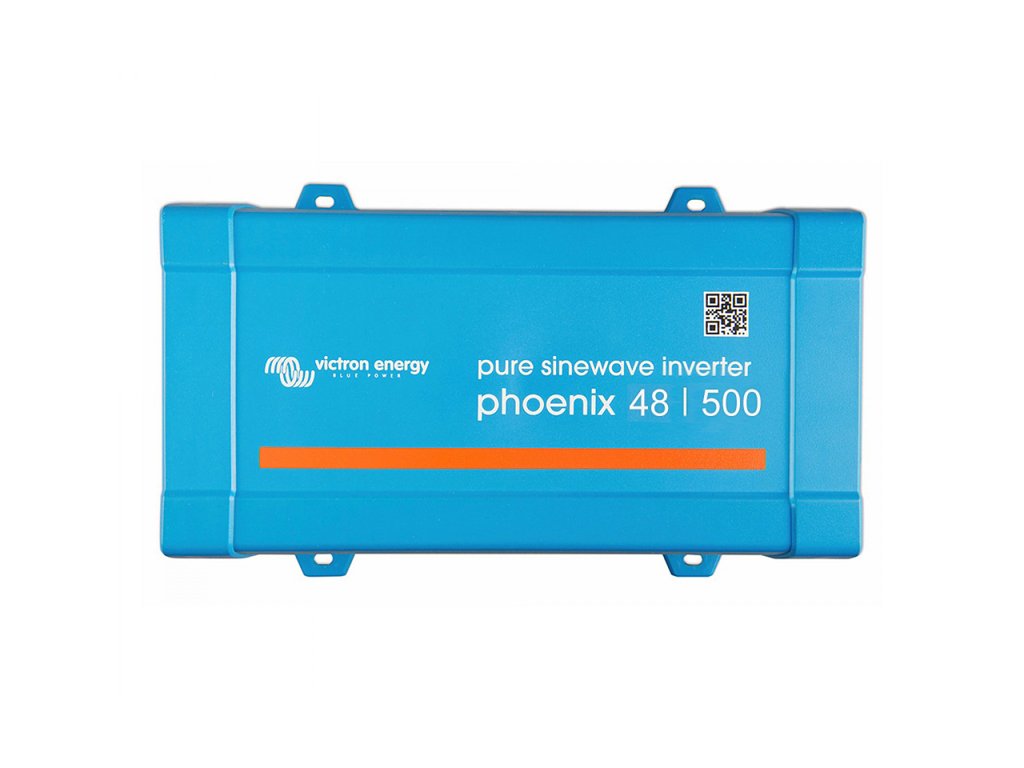

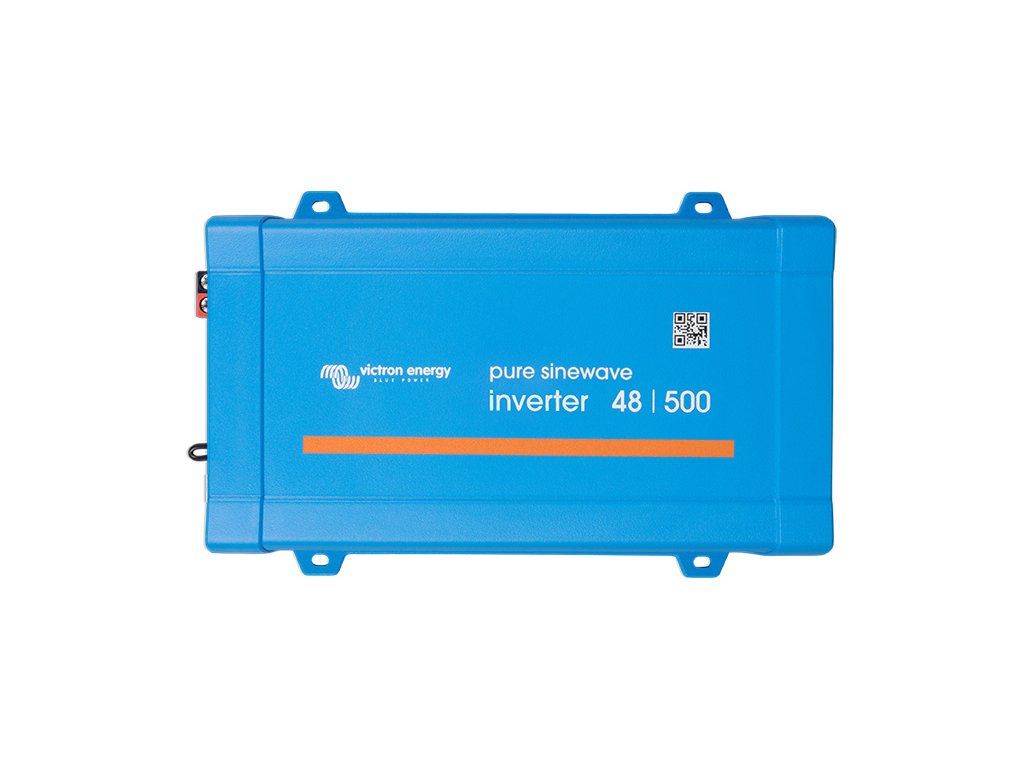

Victron Energy inverter Sinus Phoenix VE.Direct 500VA 48V

Product detailed description

Proven reliability of professional Victron Energy inverters.

The inverter contains a robust toroidal transformer, which has proven its reliability in Victron Energy inverters for many years. The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

This inverter is fully configurable - this is a completely unique feature, where you can set the following parameters using a PC:

• low and high battery voltage alarm and reset level
• inverter shutdown level at low and high battery voltage and reset level
• Output voltage 220/230/240V
• Frequency 50 Hz or 60 Hz
• ECO mode on / off sensitivity setting (setting the level when the inverter "sleeps" and when it "wakes up" again)
• Monitoring is also available: input and output voltage and current, temperature, alarms

High starting power required to start loads such as power inverters for LED lamps, halogen lamps or power tools.

ECO mode - when the load power drops below the preset value, the inverter switches to standby mode (it goes to sleep and the inverter's own consumption is then only about 1W). In standby mode with very low own consumption, the inverter will then be switched on regularly for a short time (adjustable parameter, standard: every 2.5 seconds). If the load power exceeds the preset value, the inverter will switch on again. Thanks to this function, you will save a large amount of energy that the inverter would otherwise have consumed for its operation.

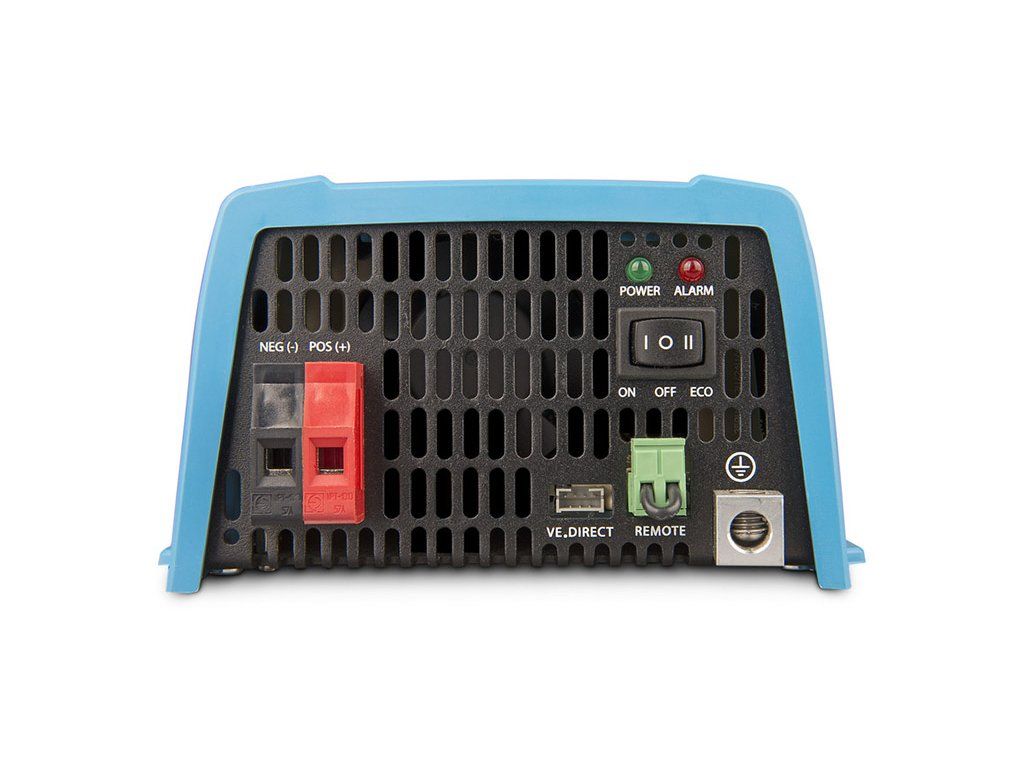

VE.Direct communication port, which can be connected to a computer (VE.Direct to USB cable required) or Apple and Android smartphones, MacBook tablets and other devices (VE.Direct Bluetooth dongle required).

Cables for connecting to the battery are not included.
